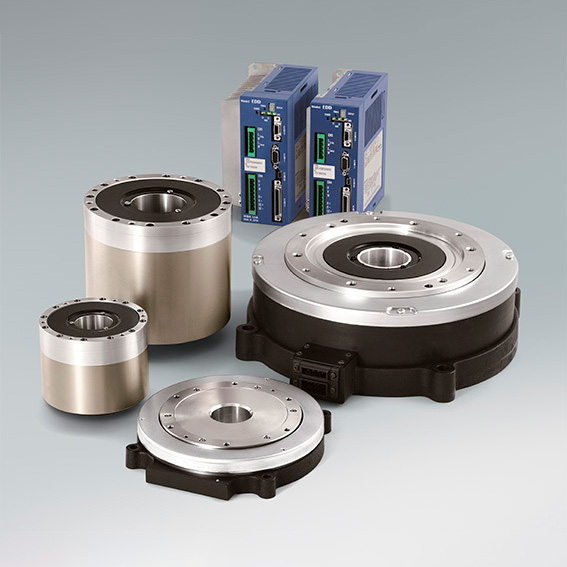

Megatorque Motor ™

Overview

With their high accuracy, high torque, light weight, and compact size, NSK direct drive motors improve productivity and contribute to higher accuracy, lighter weight, and greater compactness of various devices, such as high-speed robot arms.

Documents

CAD

PARTcommunity

2D/3D CAD data for NSK products is available through PARTcommunity.
This free service is provided by CADENAS GmbH.

2D/3D CAD Data (PARTcommunity)

Product List

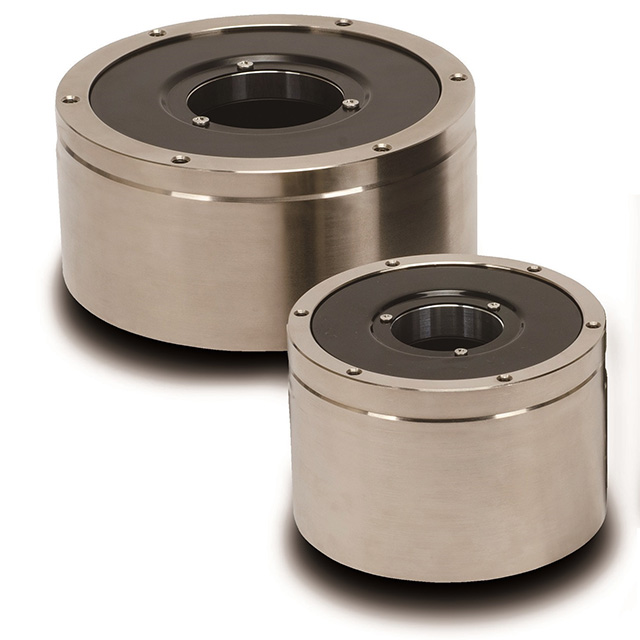

Megatorque motors (PN model, PN model with brake, environmentally resistant Z model (dustproof and waterproof), high acceleration/deceleration PX model)

Megatorque motors (PN model, PN model with brake, environmentally resistant Z model (dustproof and waterproof), high acceleration/deceleration PX model)

Megatorque motors (PN model, PN model with brake, environmentally resistant Z model (dustproof and waterproof), high acceleration/deceleration PX model)

Advanced Megatorque Motors with high-speed, high-resolution capabilities.

Features:

  • High-speed positioning
  • Thin profile
  • High-precision position sensor
  • Inner rotor

CAT. No.E3515 ( KB)

Megatorque Motor PB model

Megatorque Motor PB model

Megatorque Motor PB model

New product to contribute to reducing cost and improving productivity of machines with its incredible usability and excellent cost performance.

Features:

  • Compact size servo motor with large through hole for wiring and piping
  • Positioning by using standard pulse train positioning command
  • Real-time auto tuning function for easy start-up

CAT. No.E3513 ( KB)

Megatorque motor (PS model, outer rotor for high speed rotation)

Megatorque motor (PS model, outer rotor for high speed rotation)

Megatorque motor (PS model, outer rotor for high speed rotation)

Newly developed, low profile Megatorque Motors that inherit the performance advantages of the PS Series. Brake equipped series and high environmental resistance series are also available.

Features:

  • High-speed rotation
  • High-speed positioning
  • Compact size
  • High-precision position sensor
  • Outer rotor

CAT. No.E3515 ( KB)
